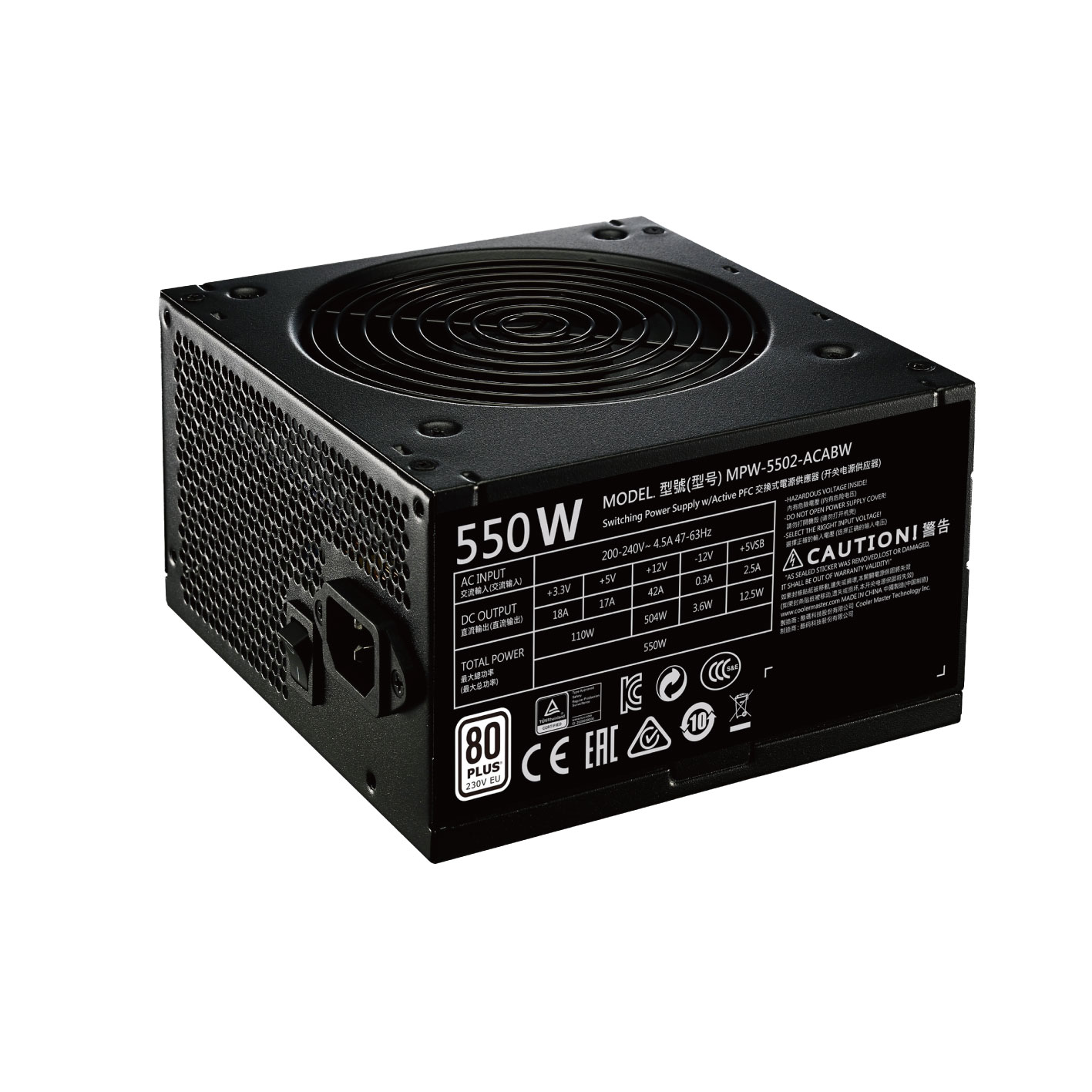

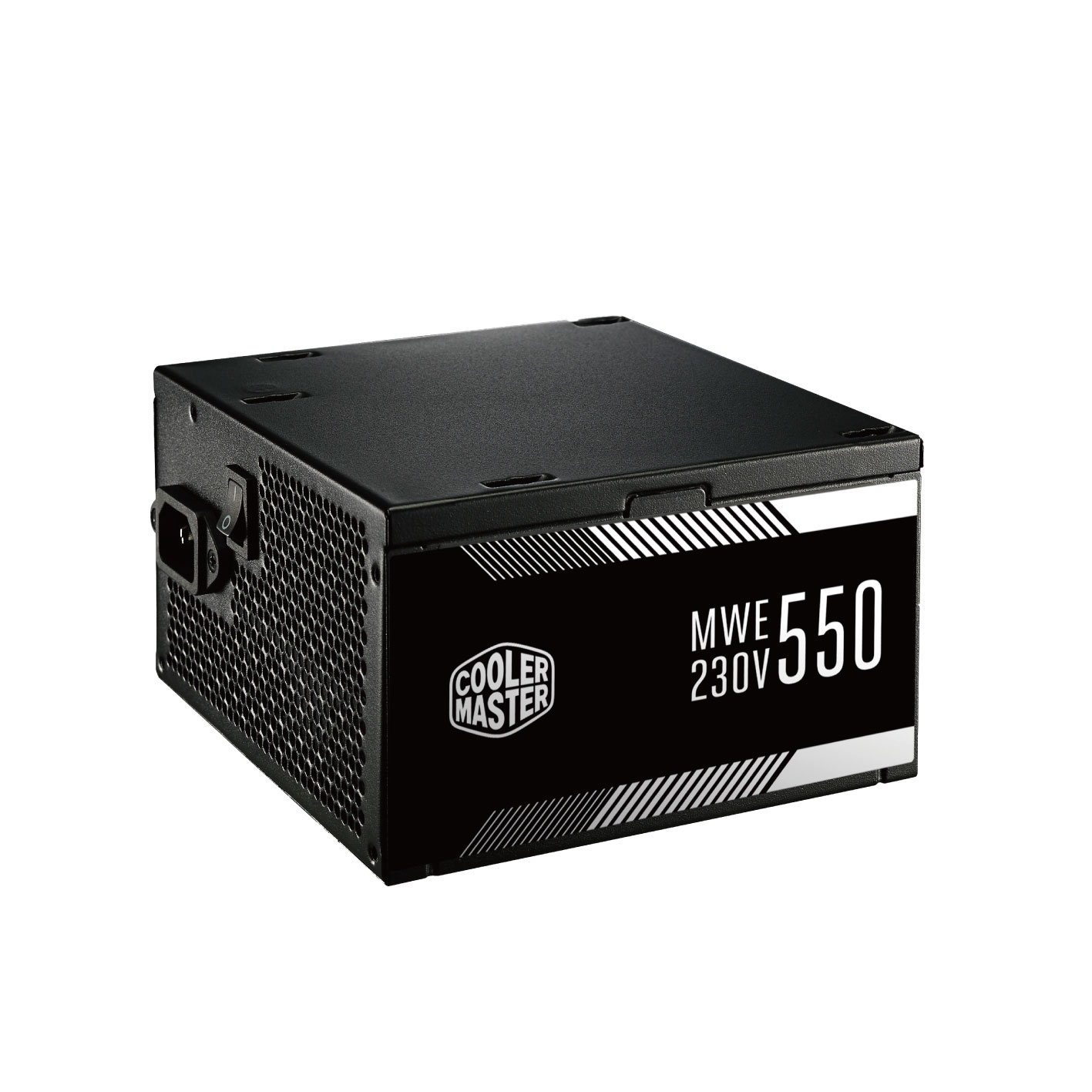

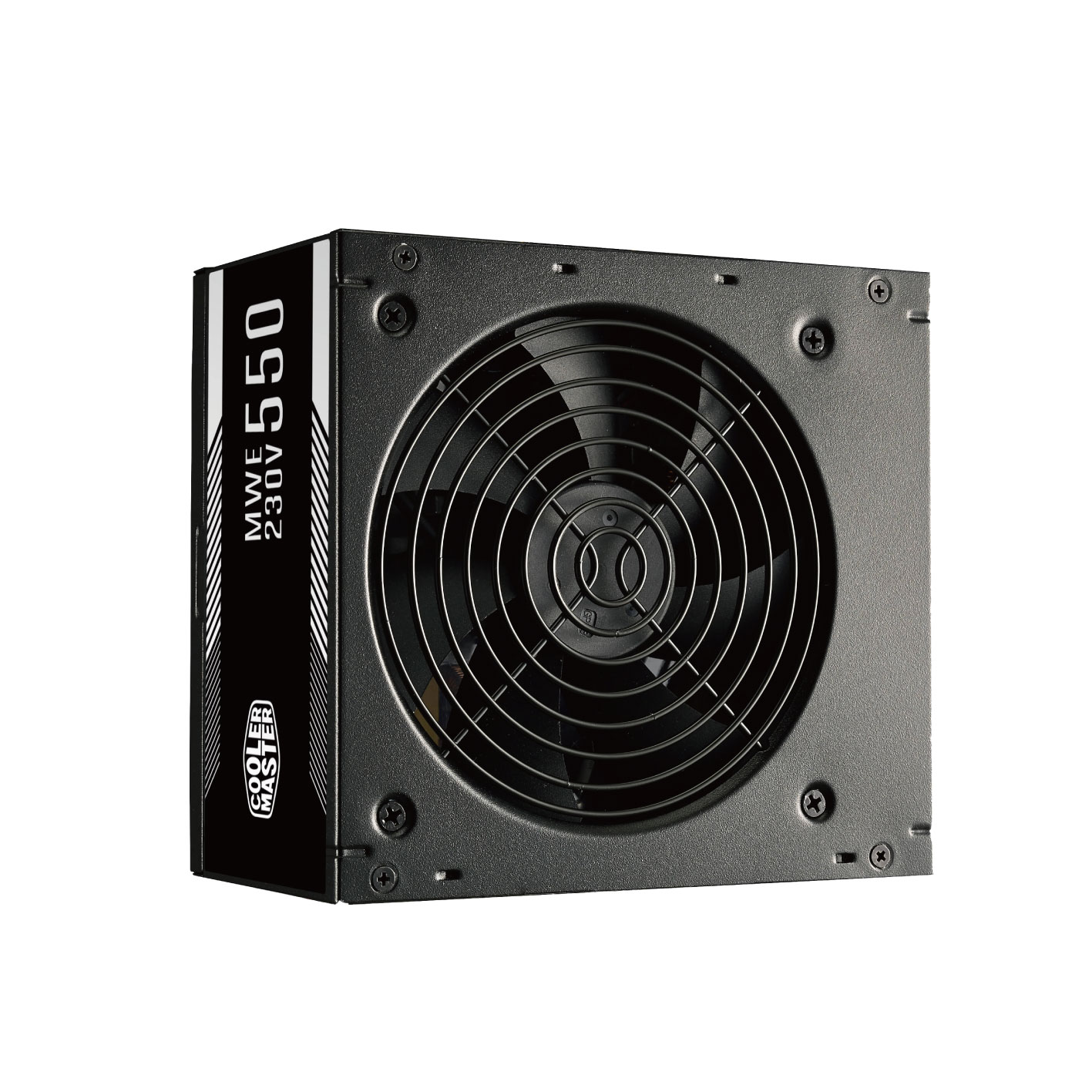

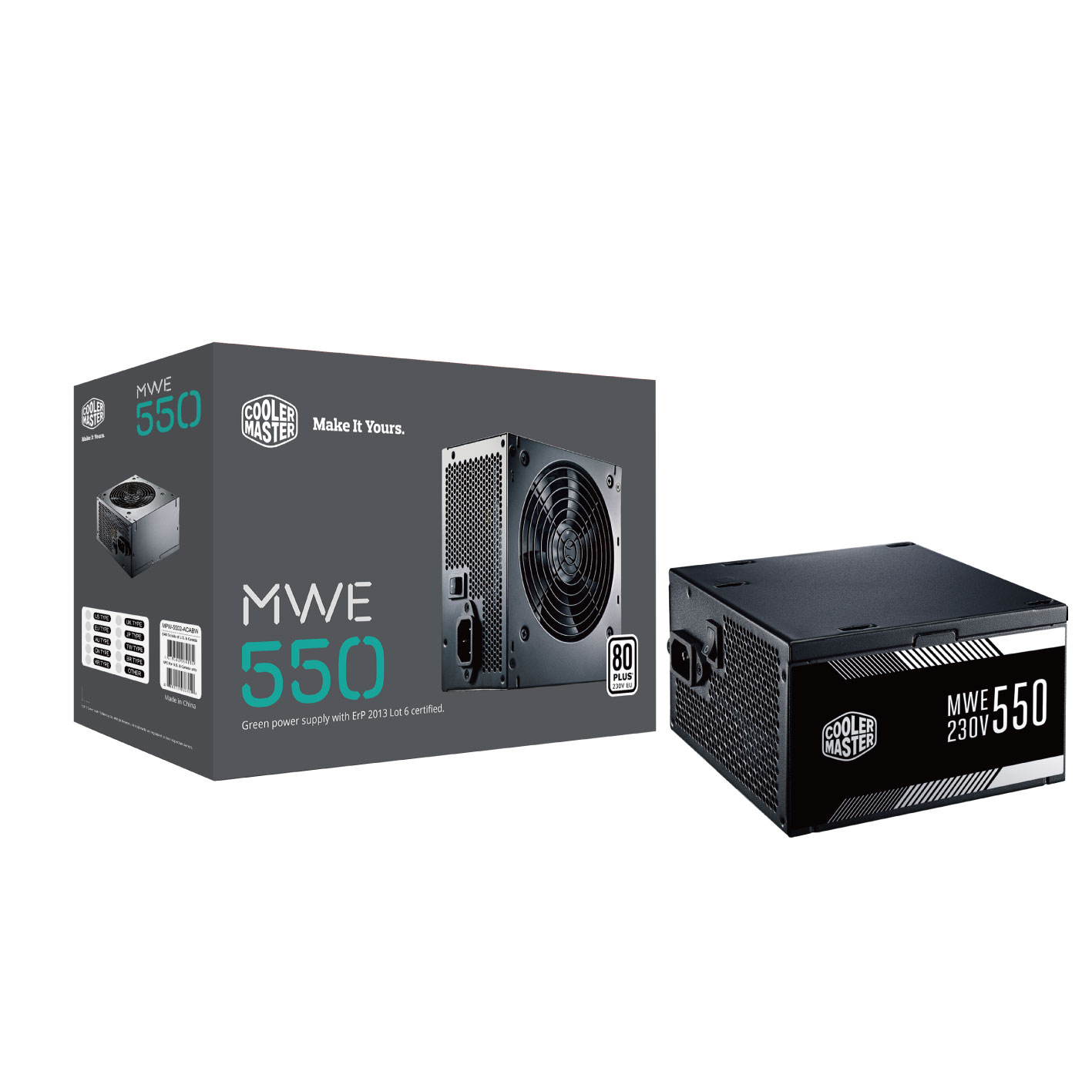

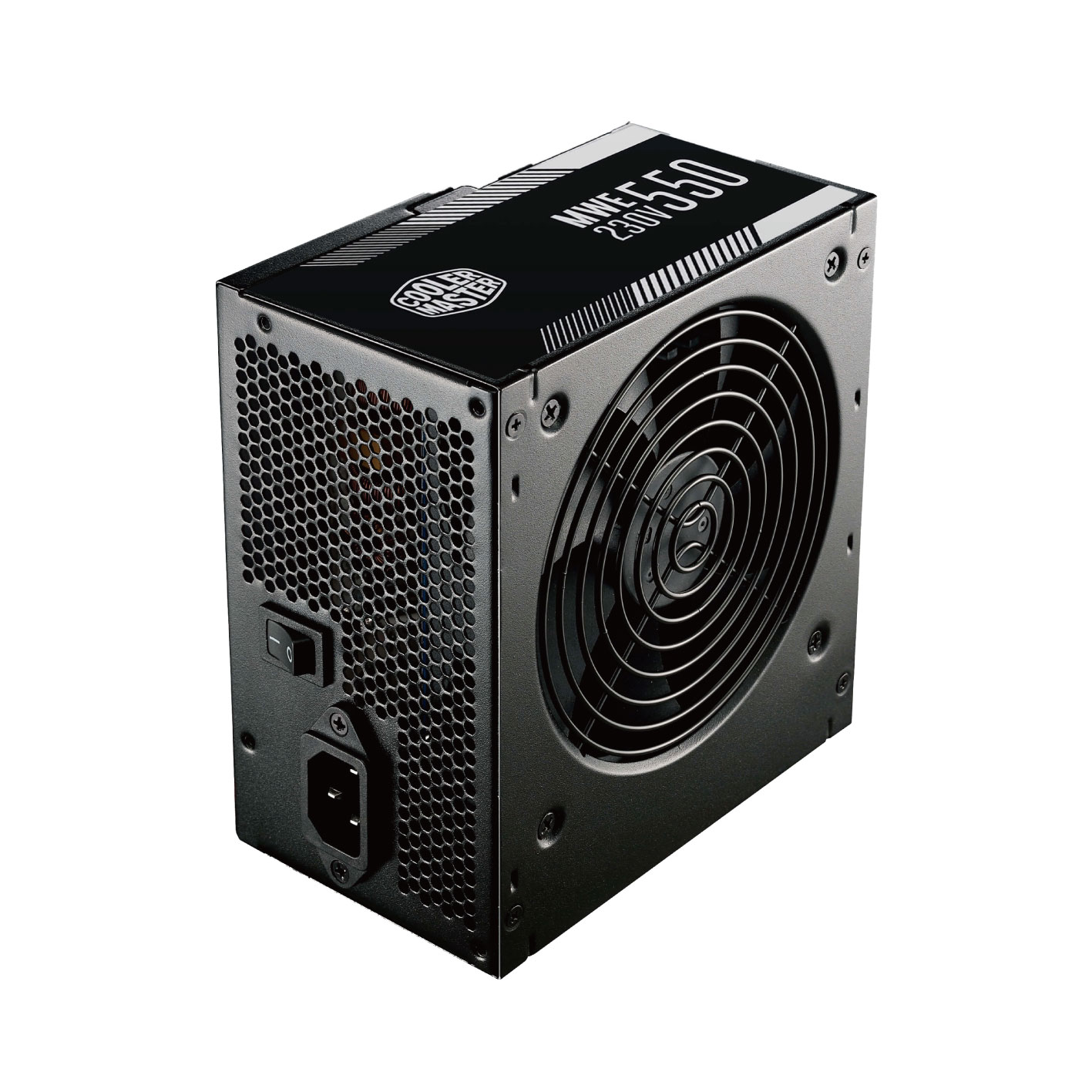

COOLER MASTER MWE 550 550W POWER SUPPLY

Description

80 PLUS STANDARD 230V EU CERTIFIED POWER SUPPLY
* 80 PLUS Standard 230V EU Certified

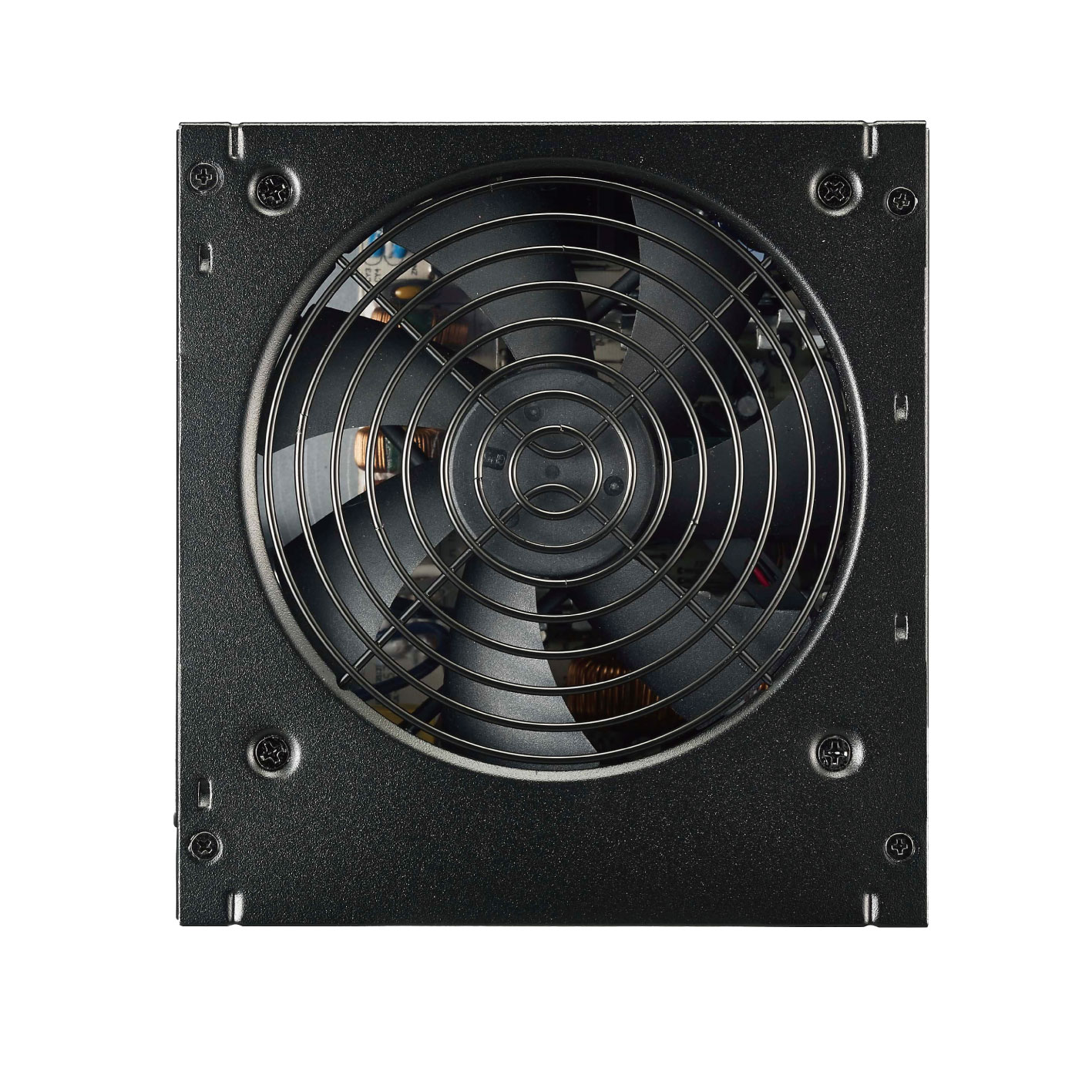

* 120mm HDB Fan
* DC-to-DC Technology
* Single +12V Rail
* Flat Black Cables

MODEL : MPE-5501-ACABW
ATX VERSION : ATX 12V V2.52
PFC : Active PFC
INPUT VOLTAGE : 200-240Vac
INPUT CURRENT : 5A
INPUT FREQUENCY : 50-60Hz
DIMENSIONS (L X W X H) : 140 x 150 x 86 mm
FAN SIZE : 120mm
FAN BEARING : HDB
FAN SPEED : 1500 RPM
NOISE LEVEL @ 20% : 13.8 dBA
NOISE LEVEL @ 50% : 18.4 dBA
NOISE LEVEL @ 100% : 31.2 dBA
EFFICIENCY : 85% Typically
80 PLUS RATING : 80 PLUS Standard 230V EU
ERP 2014 LOT 3 : Yes
OPERATING TEMPERATURE : 40°C
POWER GOOD SIGNAL : 100-500ms
HOLD UP TIME : >14ms at 100% Full Load@230Vac
MTBF : >100,000 Hours
PROTECTIONS : OVP, OPP, SCP, UVP, OTP
REGULATORY : CCC, CE, TUV-RH, EAC, RCM, cTUVus, FCC, BSMI, KC, CB
ATX 24-PIN CONNECTORS : 1
EPS 4+4 PIN CONNECTORS : 1
SATA CONNECTORS : 6
PERIPHERAL 4-PIN CONNECTORS : 3
PCI-E 6+2 PIN CONNECTORS : 2
80 PLUS : Standard
MODULAR : Non Modular
WATTAGE : 500 to 750W
SERIE : MWE White Series
