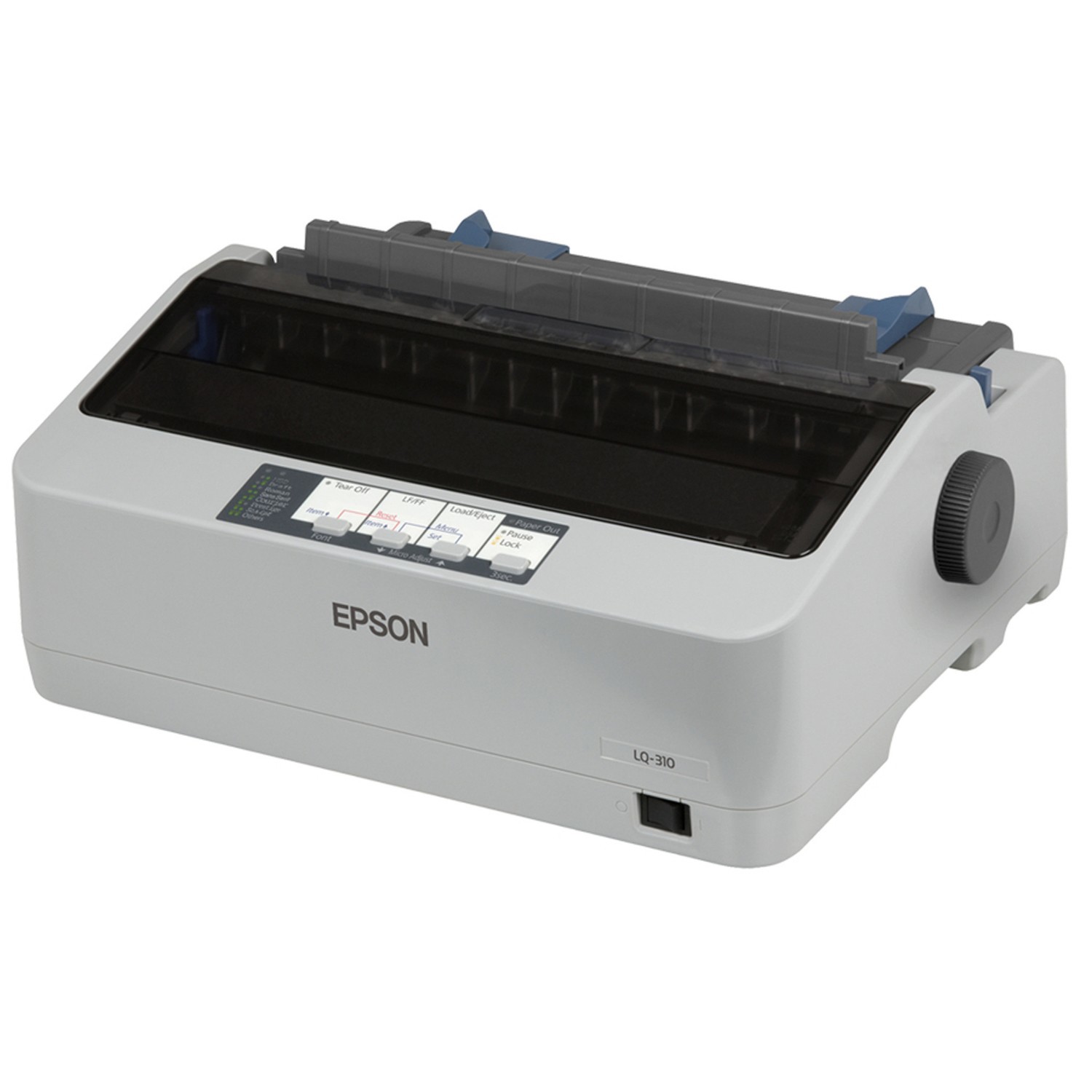

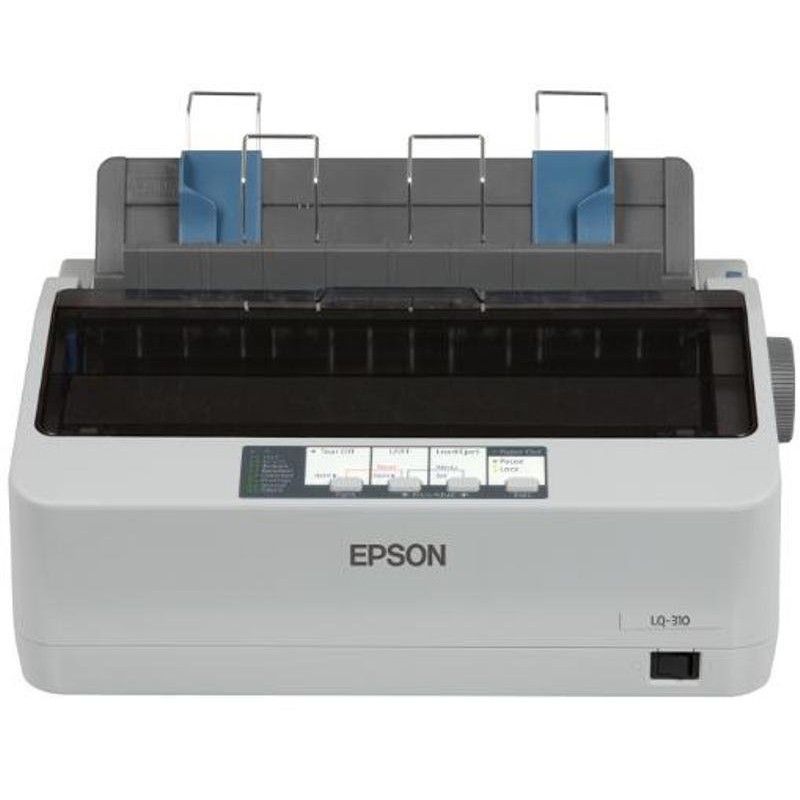

Epson LQ-310 Dot Matrix Printer

Description

WHY THE EPSON LQ310?
Building on its reputation as the world’s top dot matrix printer maker, Epson has introduced the Epson LQ-310 as the next-generation narrow carriage, 24-pin model that replaces the legendary LQ-300, featuring vastly improved speed and reliability.

Extreme Speed
The Epson LQ-310 features a 128KB input data buffer memory that is double that of its predecessor. This enables it to achieve high printing speeds of up to 416 characters per second at 12 CPI – or almost 40% faster than the model it replaces.

Improving on Legendary Reliability
The Epson LQ-310 also has an improved reliability rating that is an astonishing 67% higher than its predecessor that was already renowned for its dependability. The LQ-310 is rated for a mean time before failure (MTBF) of 10,000 POH (power on hours) compared to the older model’s 6,000 POH.

High Impact for Multiple Carbon Copies
Achieve optimum efficiency with the LQ-310’s ability to create up to a 4-part form printout (1 original + 3 copies).

Flexible Connectivity
With built-in USB, Serial and Parallel Interface options, the LQ-310 is able to connect to just about any output device you need it for.

Print Speed:
High Speed Draft:
10cpi: 347 cps
12cpi: 416 cps
Draft:
10cpi: 260 cps
12cpi: 312 cps
15cpi: 390 cps
(Condensed) 17cpi: 222 cps
(Condensed) 20cpi: 260 cps
Letter Quality:
10cpi: 86 cps
12cpi: 103 cps
15cpi: 129 cps
(Condensed) 17cpi: 147 cps
(Condensed) 20cpi: 172 cps

Reliability:
MTBF:
Approx. 10,000 POH (25% Duty)
Printhead Life:
Approx. 400 million strokes/wire
Mean Print Volume Between Failure (MVBF):
Approx. 20 million lines (Except print head)

Paper Path:
Manual Insertion:
Rear in, Top out
Push Tractor:
Rear in, Top out
Paper Media:
Cut Sheet (Single Sheet):
Length: 100 ~ 364 mm (3.9 ~ 14.3″)
Width: 100 ~ 257 mm (3.9 ~ 10.1″)
Thickness: 0.065 ~ 0.14 mm (0.0025 ~ 0.0055″)
Cut Sheet (Multi-part Forms):
Length: 100 ~ 364 mm (3.9 ~ 14.3″)
Width: 100 ~ 257 mm (3.9 ~ 10.1″)
Thickness: 0.12 ~ 0.32 mm (0.0047 ~ 0.0126″) (Total)
Envelope (No.6):
Length: 92 mm (3.6″), Width: 165 mm (6.5″), Thickness: 0.16 ~ 0.52 mm (0.0063 ~ 0.0205″) (Total)
Envelope (No.10):
Length: 105 mm (4.1″), Width: 241 mm (9.5″), Thickness: 0.16 ~ 0.52 mm (0.0063 ~ 0.0205″) (Total)
Continuous Paper (Single Sheet):
Length: 101.6 ~ 558.8 mm (4.0 ~ 22.0″)
Width: 101.6 ~ 254.0 mm (4.0 ~ 10.0″)
Thickness: 0.065 ~ 0.32 mm (0.0025 ~ 0.0126″) (Total)
Continuous Paper (Multi-part Forms):
Length: 101.6 ~ 558.8 mm (4.0 ~ 22.0″)
Width: 101.6 ~ 254.0 mm (4.0 ~ 10.0″)
Thickness: 0.065 ~ 0.32 mm (0.0025 ~ 0.0126″) (Total)
Roll Paper:
Width: 216 mm (8.5″), Thickness: 0.07 ~ 0.09 mm (0.0028 ~ 0.0035″)

Options:
Fabric Ribbon Cartridge (Black) – S015634

Supported OS:
Windows 95 / 98 / 2000 / Me /XP / Vista / 7 / 8 / 8.1 / 10
Utility:
Epson Status Monitor 3: Microsoft® Windows® 2000 / XP / 7 / 8 / 8.1 / 10
Epson Printer Setting: Microsoft® Windows® 2000 / XP / 7 / 8 / 8.1 / 10

Free Extra 2x Ribbons
