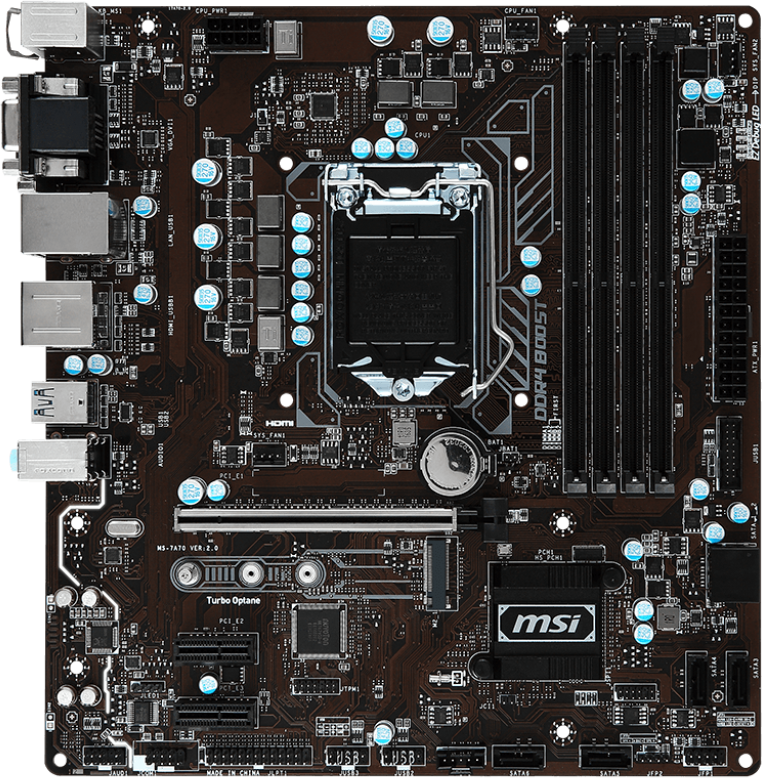

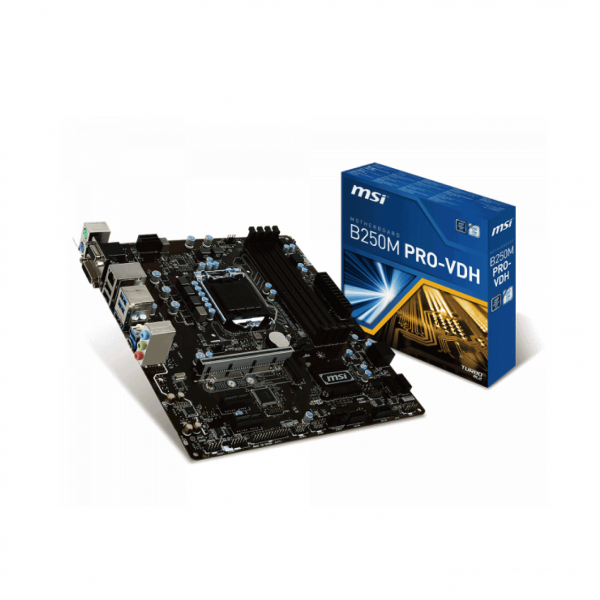

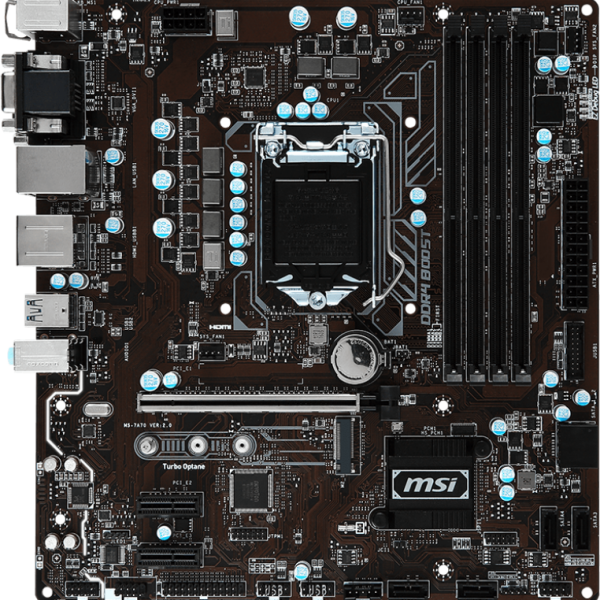

MSI B250M PRO-VDH SOCKET LGA1151 MAINBOARD

Description

★ Generation 6/7 intel core/pentium/cellon processor supporting the lga1151 architecture
★ Support ddr4-2400 memory
★ Ddr4 acceleration engine (ddr4 boost)
★ Fifth generation military material (military class 5)
★ Full protection mechanism (guard @ – @ pro)
★ Simple error detection led light (ez debug led)

【Commodity specifications】
Mainframe board specifications
Micro @ – @ atx
Host board processor slot
Socket lga1151
Host board memory slot
Ddriii dimmx4
Hostboard memory max
64g
Hostboard memory category
Ddr4 2133
Host board usb support number
12
Hostboard speaker/Line out/Mic
Speaker/Line out/Mic
Host board vga slot
Pcie 16x
Host board usb built in quantity
Usb2.0x2/Usb3.1 gen1x3+Gen1 type @ – @ cx1
Sound @ – @ building effect on hostboard
Alc 887 7.1 channel
Hostboard intranet
Realtek gb (gigabit)
Hostboard built – in display
Depending on cpu support
Host board sata interface
Sata iii x6
Hostboard pci @ – @ e 16x slot
Pci @ – @ e 3.0×16 x 1
Hostboard pci @ – @ e 1x slot
Pcie 1x x 2
Mainframe warranty
Three years

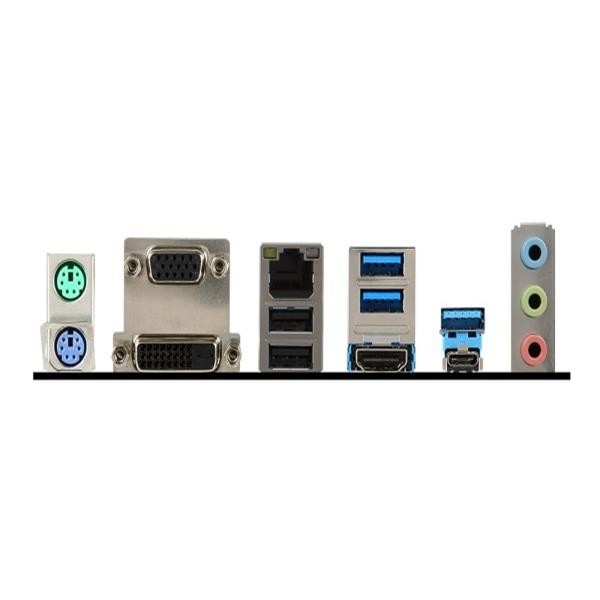

Rear side plate device connection socket for mainframe board
3 usb3.1 gen1 port 1 usb3.1 gen1 type-c
Host board socket
2 usb 2.0
Rear side plate device connection socket for mainframe board
4pcs usb 3.0 link head
Rear side plate device connection socket for mainframe board
2 usb 2.0/1.1 ports of connection
Rear side plate device connection socket for mainframe board
3 source connectors (source input)/Sound source output/Microphone)
Rear side plate device connection socket for mainframe board
1 ps/2 keyboard or mouse socket
Host board socket
2 set usb 3.0 pin connector support 4 usb 3.0 port)
Host plate capacitance
Full solid capacitance
Host board socket
6 sata 6gb/S socket
Rear side plate device connection socket for mainframe board
1 dvi-d socket
Host board socket
1 x m.2
Rear side plate device connection socket for mainframe board
Uid led
Host board socket
1x usb 3.0 link head
Rear side plate device connection socket for mainframe board
1x hdmi socket
Rear side plate device connection socket for mainframe board
1 rj @ – @ 45 port
Rear side plate device connection socket for mainframe board
1 d @ – @ sub socket
Host board socket
1x 24-pin atx main power socket
Host plate with support cd
Driver
Host board socket
1x 8-pin atx 12v power socket
Host board socket
2×4 – pin system fan connection port 1×4 – pin cpu fan connection port
Mainframe board size
M @ – @ atx (23.5 cmx22.8 cm))
