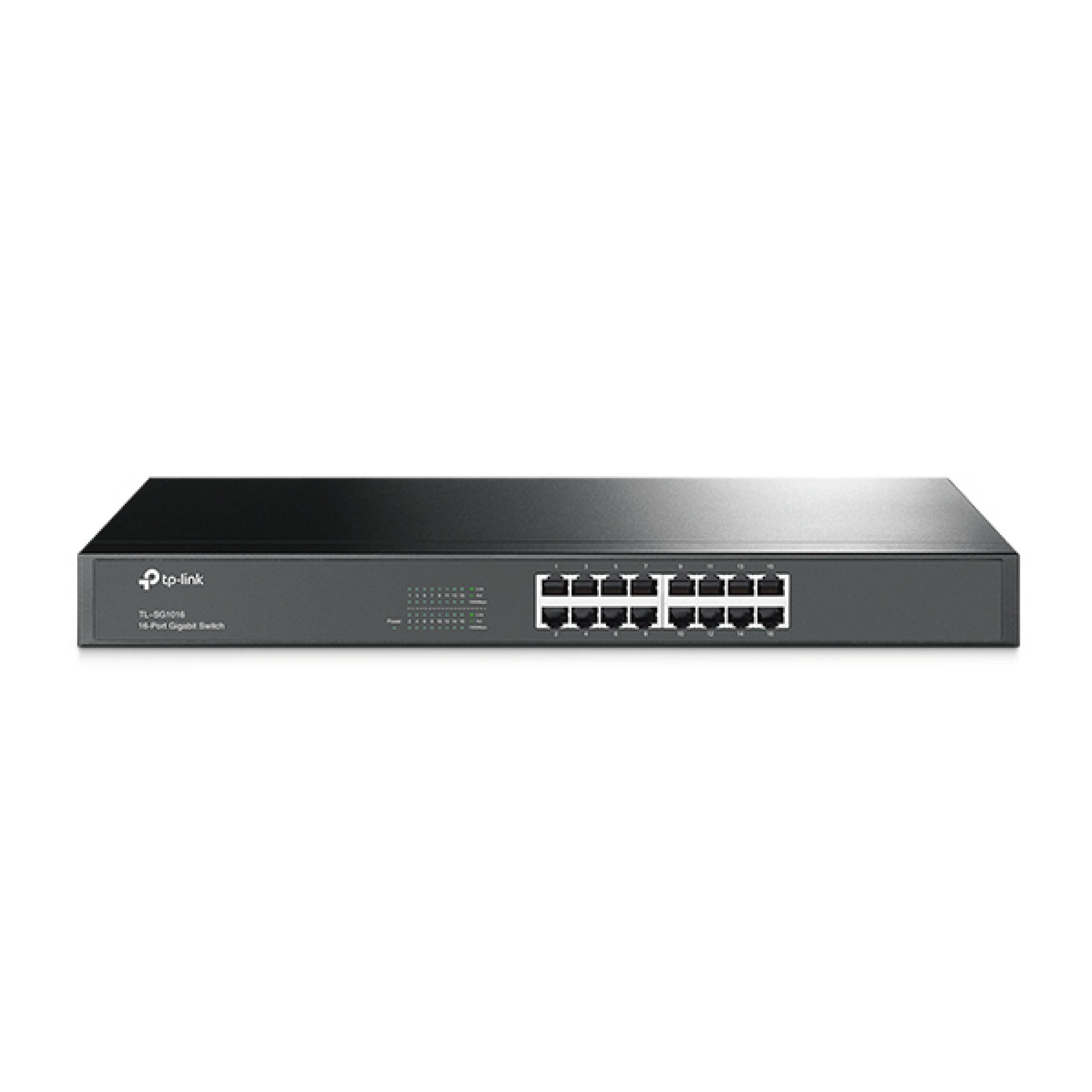

TP-Link TL-SG1016 16-Port Gigabit Rackmount Switch

Description

– 16 10/100/1000Mbps RJ45 ports
– Innovative Energy-efficient Technology Saves Power Consumption
– Supports MAC Address Self-learning and Auto MDI/MDIX
– Standard 19-inch Rack-mountable Steel Case
– 3 Years TP-Link Local Manufacturer Warranty

Hardware Features
Standards & Protocols:
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

Interface:
16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity:
Fanless

Power Supply:
100-240VAC, 50/60Hz

Power Consumption:
Maximum: 9.26W (220V/50Hz)

Dimensions (W x D x H):
17.3*7.1*1.7 in. (440*180*44 mm)

Performance
Switching Capacity:
32Gbps

Packet Forwarding Rate:
23.8Mpps

MAC Address Table:
8K

QoS:
802.1p/DSCP QoS*
*Only for V12 and later version

Jumbo Frame:
10KB

Green Technology:
Yes

Transfer Method:
Store-and-Forward

Others
Certification:
FCC, CE, RoHS

Package Contents:
16-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet

Environment:
Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
